30–100 g at the farthest point
Target plate acceleration
ESP components · Plate and frame cleaning
ESP rapping systems: MIGI rappers, rapper coils and tumbling hammers
An ESP rapping system knocks collected dust off the plates and discharge frames before the layer insulates the field. Magnetic-impulse gravity-impact (MIGI) rappers, coil-lifted plungers and geared tumbling hammers all aim at the same target: 30–100 g of acceleration at the far corner of the plate, delivered so the layer falls in sheets, not clouds.
1–30 min inlet field, hours on outlet
Rapping interval, typical
3–6 mm thickness
Dust layer sheared per blow
adjustable, order of 10–40 J per blow
MIGI rapper impact energy
01 — Function
Why an ESP must hit itself
Collection is continuous; removal is a blow. The gap between the two is where performance leaks away.
In electrostatic precipitator design, every parameter assumes a clean plate. The collected layer, growing at millimetres per hour on the inlet field of a bagasse unit fed at 720 mg/Nm³, is a resistor in series with the field: as it thickens, more of the 45–110 kV drops across dust instead of gas, mean voltage sags, and on ash near the 10¹¹ Ω·cm limit the layer breaks down into back-corona. The rapping system's job is to shear that layer off the collecting electrodes — and the finer coating off the discharge frames — while it is still 3–6 mm thick and coherent enough to fall as sheets into the hopper.
The design quantity is acceleration at the plate, measured in g. Experience across fuels puts the useful window at roughly 30–100 g at the farthest point from the anvil: below it, tenacious layers (alkali-bound wood ash, recovery-boiler salt cake) stay put; well above it, plate welds, hanger holes and the rapping bars themselves fatigue. Because a roll-formed 1.2–1.5 mm plate transmits impact as a stress wave, the geometry of anvils and rapping bars matters as much as the blow — energy that arrives as flexure instead of acceleration cleans nothing and cracks metal.
02 — Hardware
MIGI rappers, tumbling hammers, vibrators
Three ways to deliver a blow; the right one depends on roof space, ash and maintenance culture.
The magnetic-impulse gravity-impact (MIGI) rapper is the roof-mounted standard on American-lineage ESPs. A rapper coil — a heavy solenoid winding around a guide tube — receives a shaped DC pulse, lifts a steel plunger, and lets it fall by gravity onto an anvil rod that carries the impact down to a plate row or discharge frame. Because lift height follows pulse energy, impact is electrically adjustable per rapper, from a tap to the full 10–40 J class blow, with no moving parts inside the gas.

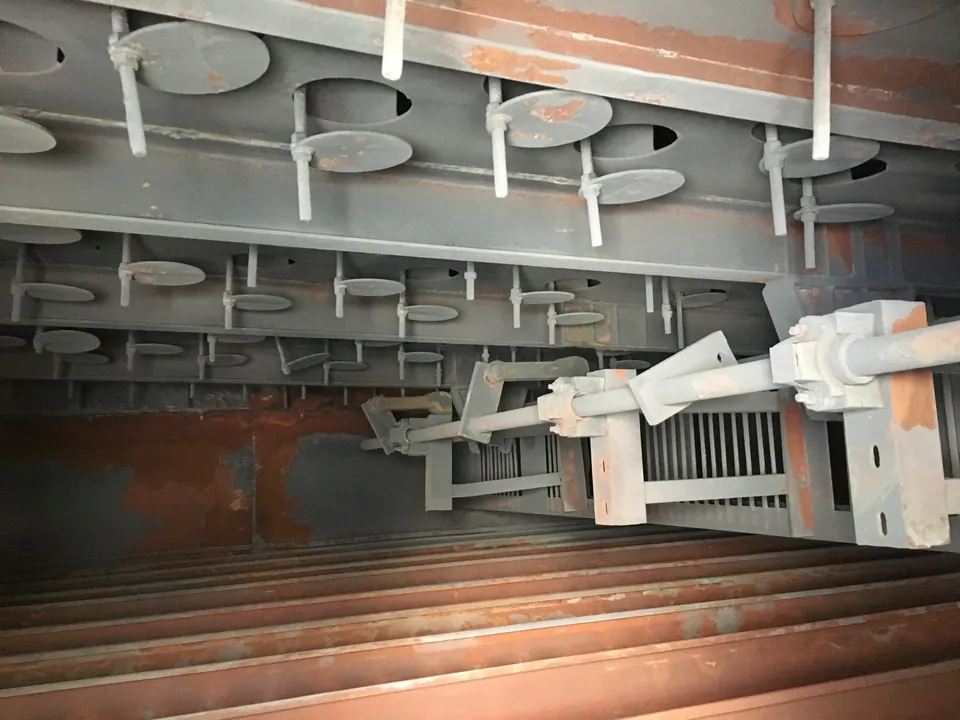

The tumbling hammer system, standard on European-lineage designs, mounts a slow-turning shaft inside the casing carrying 3–8 kg hammers that tumble past top dead centre and strike anvil plates on each electrode row — one geared drive raps a whole field in rotation. It is mechanically simple and delivers heavy, consistent blows, at the price of wear parts (bearings, hammer pivots, anvils) living in hot, dusty gas; the shafts and their external gearmotors are covered under ESP drive systems. External vibrators — electric or pneumatic — supplement both on hoppers and gas distribution screens, where the need is sustained low-amplitude agitation rather than a discrete blow.
| System | Blow character | Adjustability | Wear parts location | Typical application |
|---|---|---|---|---|
| MIGI rapper (rapper coil + plunger) | Single impact, 10–40 J class, gravity-timed | Electrical, per rapper, from the controller | Coil and plunger outside the gas, on the roof | Plate and frame rapping where per-point tuning matters |
| Tumbling hammer on geared shaft | Heavy swung impact, 3–8 kg hammer | Mechanical — hammer mass and shaft speed | Inside the casing: pivots, bearings, anvils | Plate rows and discharge frames on European-design ESPs |
| External electric/pneumatic vibrator | Sustained vibration, low amplitude | Frequency and duty cycle | Fully external, freely accessible | Hoppers, gas distribution screens, sticky-ash assist |
| Anti-sway / frame rappers | Light impacts at reduced energy | As per parent system | As per parent system | Discharge frames — cleaning emitters without breaking them |
03 — Operation
Sequencing: cleaning without emitting
A rapping programme is an emissions decision executed once a minute.
How should ESP rapping be sequenced to avoid re-entrainment?
One section at a time, inlet fields often, outlet fields rarely, and never two adjacent outlet sections together. The inlet field of a design-basis bagasse unit collects most of its 720 mg/Nm³ load and can rap every few minutes; the outlet field guards the 24 mg/Nm³ stack figure and raps on intervals of hours, ideally power-off.
Every blow re-entrains a fraction of the layer. From an inlet field that puff is recaptured downstream; from the outlet field it appears on the stack as an opacity spike a CEMS will log. Three practices keep rapping off the emissions trace. Staggering: the programme walks through sections so re-entrained dust from one always faces energised fields on its way out. Interval matching: each field raps when its layer reaches the 3–6 mm shear thickness — not on a uniform clock, which over-raps the outlet (emission) and under-raps the inlet (buried plates). Power-off rapping: the ESP controller drops or removes field voltage for the seconds around the blow, so the sheet slides down a de-energised lane instead of exploding against the field; modern controllers coordinate this with reduced boiler-load windows. If the plant's opacity chart shows a comb of regular spikes, the rapping programme — not the sizing — is usually the finding.
04 — Failure and retrofit
Coil failures, hammer wear, and changing systems
Rapping degrades silently — the field still reads kV while the plates quietly bury themselves.
Why do rapper coils fail, and how is it caught?
Insulation breakdown and plunger wear. Rapper coils live on a roof at close to casing temperature, and winding insulation ages fast near its class limit — overlong energisation pulses finish it. Worn guide tubes let the plunger cock and rub, bleeding impact energy. The catch is periodic lift-check and plate-acceleration measurement, because a failing rapper still clicks.
A coil with shorted turns draws current and moves the plunger — just not far enough. That is why rapping health checks measure outcomes: plunger lift per rapper, and g at reference points on the plates against the 30–100 g commissioning baseline. On hammer systems the equivalent creep is mechanical: pivot and bearing wear retards the tumble, anvil faces mushroom, and blow energy fades a few percent a year until sections of the field stop cleaning. Symptoms upstream of any measurement: rising spark rate at falling mean kV (thickening layer), hopper flow becoming lumpy, and slow growth of absorbed power for the same stack result. CONFIRM: rapper coil and plunger assemblies held as stock spares, and standard replacement lead time.
Retrofitting between systems runs in both directions and is common in ESP upgrade scope. Coil-type to tumbling hammer suits sites tired of maintaining dozens of roof-mounted MIGI rappers and their pulse cabling — one shaft and gearmotor per field replaces them, at the cost of in-gas wear parts and per-row rather than per-point adjustment. Hammer to MIGI suits sites chasing emissions fine-tuning: electrical adjustability lets the outlet field rap at minimum useful energy on long intervals, which hammers cannot do gracefully. Either conversion re-routes the load path — new anvils on the suspension, roof penetrations or internal shafts, and controller integration — so it is engineered against the existing collecting electrode suspension, not bolted on.
FAQ
Engineering questions, answered
What is a MIGI rapper on an ESP?
A magnetic-impulse gravity-impact rapper: a rapper coil energised by a DC pulse lifts a steel plunger, which then falls by gravity onto an anvil rod connected to the plate or frame suspension. Impact energy — on the order of 10–40 J — is adjusted electrically by pulse height, so intensity can be tuned per field without entering the casing.
How much rapping intensity does an ESP plate need?
Enough that the farthest corner of the plate sees roughly 30–100 g of acceleration — below about 30 g, tenacious ash layers stay put and the field slowly buries itself; far above, plates and welds fatigue. Intensity is verified with accelerometers at commissioning, then set per field: hardest on sticky inlet dust, gentlest on the outlet field.
Why does rapping cause opacity spikes?
Each blow re-entrains part of the dislodged layer, and from the outlet field that puff goes straight up the stack. The cure is sequencing: rap only one section at a time, never adjacent outlet sections together, stretch outlet-field intervals to hours, and use power-off rapping — briefly dropping field voltage — so the sheet falls through a quiet gas lane.
Why do rapper coils fail?
Two modes dominate. Insulation breakdown: rapper coils sit on a hot casing roof, and winding insulation ages fast near its temperature class, faster with overlong energisation pulses. Plunger wear: millions of lift-drop cycles oval the guide tube, the plunger cocks and rubs, and impact energy fades. Both appear as fields that rap electrically but no longer clean.
Can coil-type rappers be converted to tumbling hammers, or vice versa?
Yes, in both directions during a rebuild. Coil-to-hammer suits plants wanting fewer roof penetrations and mechanical simplicity — one geared shaft raps a whole row. Hammer-to-MIGI suits plants wanting per-point electrical adjustability and less in-gas wear hardware. Either conversion changes anvils, suspension load paths and controls, so it is scoped like an internals retrofit, not a parts swap.
