30–80 g/Nm³
Kiln/raw-mill dust load
Industries · Cement
Cement: dust collection for kiln, raw mill and clinker cooler
Cement plant dust collection is three different problems wearing one name: kiln/raw-mill gas at 30–80 g/Nm³ of high-resistivity meal dust, clinker-cooler air carrying hot, coarse, abrasive clinker fines, and alkali bypass dust. Each duty gets its own collector, conditioning strategy and — on the kiln ESP — CO trip logic at 1.5–2 % CO.
up to ≈ 10¹²–10¹³ Ω·cm
Meal-dust resistivity, direct operation
≈ 140–160 °C
Gas conditioning tower outlet
1.5–2 % CO by volume
Kiln ESP CO trip threshold
01 — The duty
Why cement plant dust collection is three problems, not one
Kiln gas, cooler air and bypass dust share a fence line and almost nothing else.
A cement line generates three principal dust-laden streams, and they differ in every parameter that sizes a collector. The kiln/raw-mill exhaust carries 30–80 g/Nm³ of fine raw-meal dust — ten times a heavy boiler load — in a gas whose temperature, moisture and dust chemistry flip daily between two operating modes. The clinker cooler vents hot excess air, around 250–350 °C at the collector after cooling, loaded with coarse, freshly fractured, highly abrasive clinker fines. The alkali bypass, where fitted, extracts a hot chloride- and alkali-rich gas slip whose condensed salts are both sticky and corrosive. One plant, three collectors, three distinct design bases.
What unites them is the cost of getting it wrong: the kiln collector sits in the plant's critical path, so a collector outage is a kiln outage. This page works through each duty — compound versus direct operation and the resistivity problem, the clinker-cooler corrosion and sparking failure class Arrow has re-engineered in the field, bypass dust, and the CO trip logic that governs every kiln ESP. The parent industries hub places cement alongside Arrow's boiler-based duties, where the contrast in dust chemistry is instructive.
02 — Ash & gas
Dust and gas properties by duty
The kiln collector must be designed for two gas conditions at once.
| Property | Kiln — compound (mill on) | Kiln — direct (mill off) | Clinker cooler |
|---|---|---|---|
| Dust load | 30–80 g/Nm³ | Lower mass, finer cut | ≈ 5–20 g/Nm³ |
| Gas temperature at collector | ≈ 90–120 °C | ≈ 140–200 °C after conditioning | ≈ 250–350 °C |
| Gas moisture | Higher — mill drying water added | Low and dry | Ambient air — essentially dry |
| Dust character | Fine raw meal, free-flowing | Fine raw meal, high resistivity | Coarse, angular, abrasive clinker fines |
| Resistivity | ≈ 10⁹–10¹¹ Ω·cm | up to ≈ 10¹²–10¹³ Ω·cm | High — dry hot air, no conditioning moisture |
| Special hazards | CO excursions on kiln upset; mode switching daily | Chloride attack on plates; erosion; thermal cycling | |
The resistivity rows explain most kiln-ESP behaviour. Raw-meal dust in a hot, dry gas holds surface resistivity above the ≈ 10¹¹ Ω·cm threshold where the collected layer can no longer conduct its charge away; the layer's internal field then breaks down and injects positive ions back into the gas — back-corona — collapsing effective migration velocity while the T/R sets show deceptively healthy current. In compound operation the raw mill rescues the situation for free: its drying water humidifies the gas and drops resistivity one to two decades. In direct operation something must replace that water — which is what the gas conditioning tower (GCT) is for, spray-cooling the gas to roughly 140–160 °C ahead of the collector. A kiln ESP specified only for compound conditions will fail its permit every time the mill stops.
03 — The train
Recommended trains, duty by duty
Conditioning plus ESP or bag filter on the kiln; abrasion-hardened collection on the cooler.
Which collection train works on cement kiln exhaust?
Either a gas conditioning tower followed by an ESP sized for direct-mode resistivity, or a bag filter with membrane or aramid media that ignores resistivity entirely — the choice pivots on the CO trip question and on limits. Below roughly 10–20 mg/Nm³, or where kiln CO excursions are frequent, the bag filter usually wins; an existing serviceable ESP casing argues for conditioning and rebuild instead.

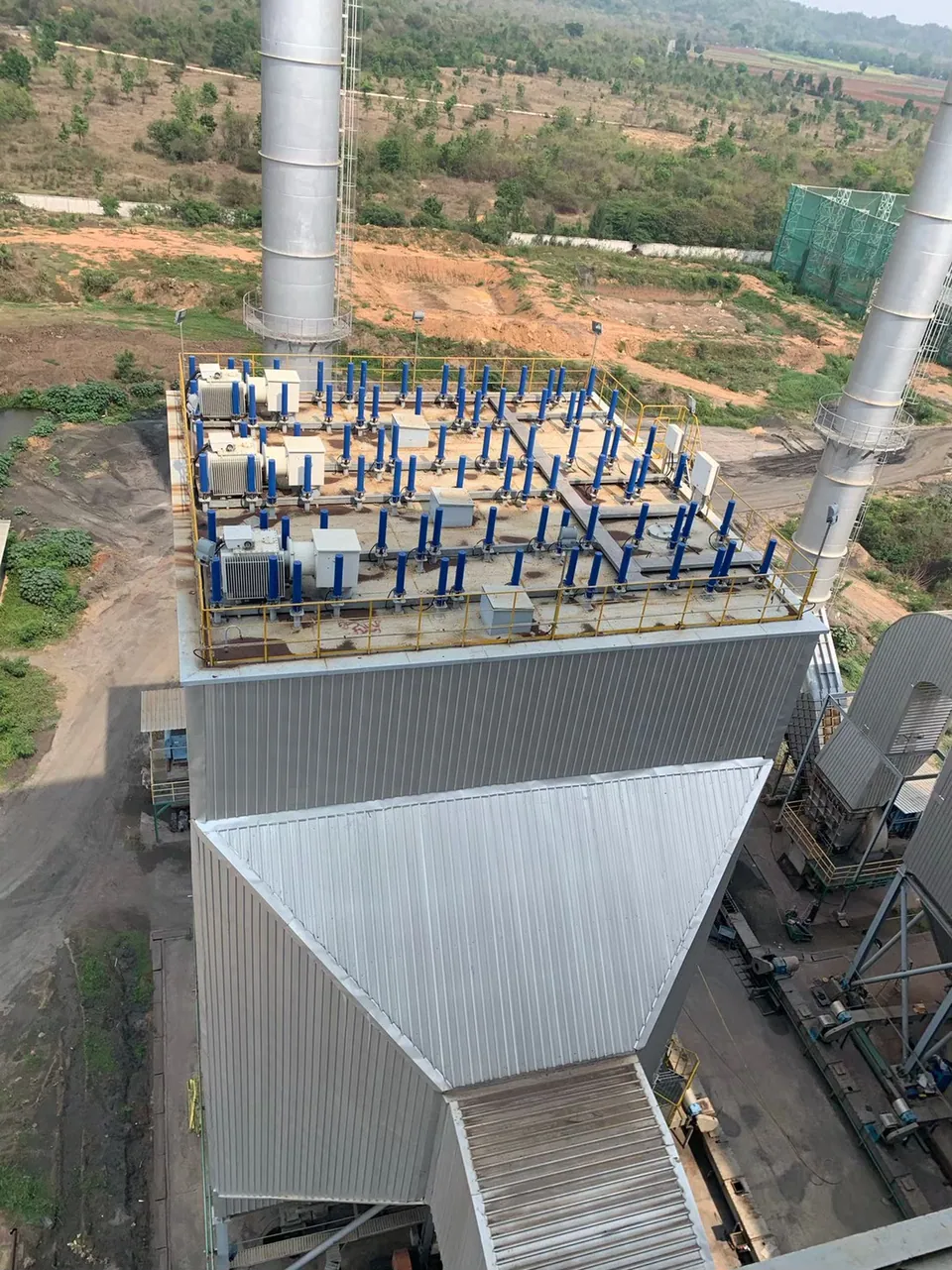

The kiln train Arrow recommends therefore starts upstream of any electrode: get the gas condition right. GCT outlet temperature around 140–160 °C, evaporation fully completed before the collector (wet bottoms in a GCT become buildup in a precipitator), then the final collector. Where the electrostatic precipitator is retained, sizing uses direct-operation resistivity, generous SCA, and modern controls — high-frequency energisation and intermittent charging ride through moderate back-corona where conventional DC cannot. Where the plant converts, the bag filter takes the same conditioned gas and holds its outlet regardless of operating mode; conversions of existing ESP casings to bag filters, reusing casing and hoppers, fall under Arrow's ESP upgrade scope.
The clinker cooler gets its own hardware: cooling (air-to-air heat exchanger or water sprays) to bring 250–350 °C air into the collector's window, then an ESP or bag filter detailed for abrasion — controlled face and duct velocities, wear plates at inlet elbows, and collecting-plate specifications that anticipate the corrosion mechanism in the next section. Bypass dust, chloride-rich and valuable to remove from the kiln circuit, is typically collected in a dedicated small bag filter after quench cooling; its dust is kept segregated because its chloride content makes it unusable in the main cement stream beyond blending limits.
04 — Failure class
Clinker-cooler plate corrosion and sparking: a failure class from the field
How chloride attack turns into electrical instability — and what the redesign changes.
Arrow's field scope on cement includes re-engineering clinker-cooler ESPs that had fallen into a characteristic failure spiral, described here as a mechanism class without customer identification. It begins at shutdowns: cooler air is dry in operation, but every stop lets the casing cool through the dewpoint, and chlorides carried on the clinker dust — from bypass dust re-circulation, alternative fuels, or the raw materials themselves — deliquesce into a corrosive film on the collecting plates. Pitting follows, then thinning at the pit fields, then distortion of the thinned collecting electrodes under rapping acceleration. Distorted plates lose the design discharge-to-collecting clearance locally; the field's sparkover voltage is set by its worst single point, so the T/R controller ramps back everywhere to protect one warped metre of plate. Operators see it as chronic sparking and falling kV; the stack sees it as a slow emission climb over months.
The redesign addresses cause and symptom together: plate material and thickness selected for the chloride environment, revised rapping intensities that thinned sections can survive, restored and verified electrode alignment, and controller strategies that quench sparks per field rather than de-rating the casing. The general lesson exports to every hot, chloride-bearing duty: corrosion on a precipitator is not merely a maintenance cost — it is an electrical performance failure with a mechanical root cause, and repainting the casing fixes none of it.
05 — CO trip logic
The CO trip: explosion protection versus stack compliance
Why every kiln ESP is designed to switch itself off — and how to make that rare.
Why does a cement kiln ESP trip at 1.5–2 % CO?
Because an ESP is a continuous spark source inside a large casing: if a kiln combustion upset fills that casing with CO approaching its lower explosive limit, a single sparkover can ignite it. High-voltage supplies therefore trip automatically at 1.5–2 % CO by volume, with alarms staged below. During the trip the precipitator is a duct — collection falls to the mechanical few percent — and stack dust spikes for the minutes the upset lasts.
Those minutes count against increasingly strict short-term averaging in modern permits, which is what makes trip frequency an emissions parameter, not just a safety one. Mitigation is layered. Fast-response CO analyzers at the preheater exit, with sample lines measured in seconds not minutes, buy warning time. Staged logic sheds fields sequentially rather than dumping the casing at once, holding partial collection through minor excursions. Combustion-side work — burner condition, fuel dosing stability, oxygen trim — attacks the excursion rate itself, and on lines firing coarse alternative fuels this is usually where the biggest gains sit. And where trips remain frequent despite all of it, the structural fix is the collector with no ignition source: the bag filter, which rides through a CO excursion collecting normally — one of the honest reasons the industry has drifted toward fabric filtration on kiln duty even where ESP economics otherwise hold.
Applicable dust limits for cement kilns and coolers vary by jurisdiction and permit vintage: CONFIRM: current particulate limit for cement kiln and clinker-cooler stacks in the target jurisdiction, with reference conditions. Anonymised cement-duty project summaries are collected under references; guaranteed figures are stated per project after the technical assessment, on a stated operating mode, reference O₂ and gas condition.
FAQ
Engineering questions, answered
Why do cement kiln ESPs need gas conditioning?
Raw-meal dust in dry kiln exhaust is high-resistivity — up to about 10¹²–10¹³ ohm-cm in direct operation when the raw mill is off and the gas is hot and dry. Above roughly 10¹¹ ohm-cm the collected layer breaks down and back-corona sets in. A gas conditioning tower cools the gas to about 140–160 °C with water sprays, dropping resistivity back into the collectable window.
What is compound operation in a cement plant?
Compound operation routes kiln exhaust through the raw mill, which uses the heat for drying and returns a cooler, wetter, dustier gas — total loads of 30–80 g/Nm³ reach the kiln collector. In direct operation the mill is off and the gas arrives hotter, drier and at its highest resistivity. The collector must be sized and conditioned for both states, because the plant switches between them daily.
Why does a kiln ESP trip on CO, and what happens to emissions?
A kiln upset can fill the ESP casing with combustible CO; a spark could then ignite it, so high-voltage supplies trip automatically at 1.5–2 % CO by volume. During the trip the ESP collects almost nothing and stack dust spikes until the field re-energises. Mitigation is fast CO analyzers, staged field shutdown, combustion control that avoids the excursion, or a bag filter, which has no ignition source.
What dust collector suits a clinker cooler?
Cooler excess air arrives at roughly 250–350 °C after cooling, carrying coarse, highly abrasive clinker dust. Both ESPs and bag filters are applied; either way the design drivers are abrasion-resistant internals, controlled gas velocities, and protection against chloride-driven corrosion of collecting plates during dewpoint excursions — a documented failure class Arrow has re-engineered on operating coolers.
What emission level can a cement plant dust collector reach?
Modern kiln and cooler collectors are designed to outlet levels of 10–30 mg/Nm³, with below 10 mg/Nm³ achievable on adequate collecting area or membrane bag media. From loads of 30–80 g/Nm³ that means collection efficiencies above 99.9 %. Guaranteed figures are stated per project on a defined operating mode, reference O₂ and gas condition.
